Compliant with AUTOSAR Classic Standard
Stable, Reliable, and Mass-Production Proven
NeuSAR cCore全面升级
并发布全新工具链产品
NeuSAR cCore全面升级
并发布全新工具链产品
东软睿驰NeuSAR cCore全面升级，新版本在AUTOSAR R21-11标准基础上持续完善，着力多核部署，强化通信性能、存储性能及信息安全方案的升级，同时推出NeuSAR cCore全栈工具链产品，大幅提升工具易用性，降低集成的时间成本，助力OEM构建下一代域控制器架构的通用基础软件平台，通过软件实现功能的创新迭代，为整车构建更高的性能及应用价值。

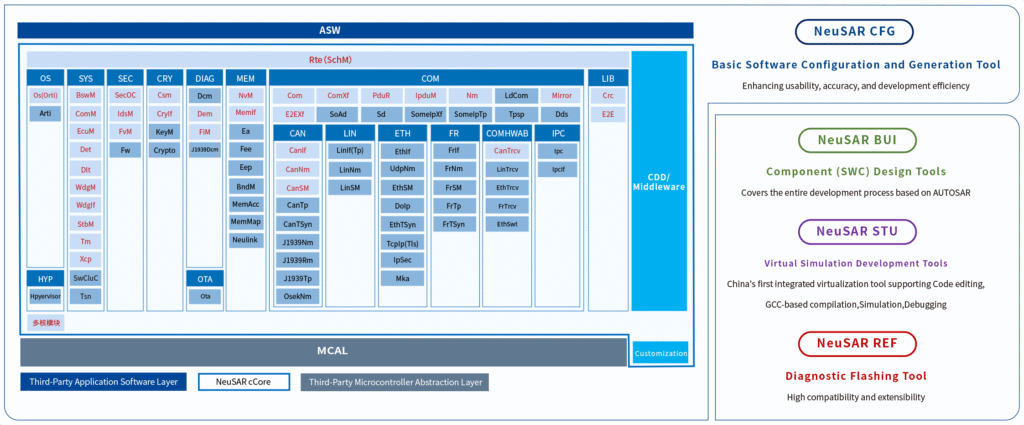

NeuSAR cCore 4.0产品总览图
NeuSAR cCore is a foundational software product developed based on the AUTOSAR Classic platform standard, specifically designed for automotive applications with high real-time performance requirements, such as traditional control systems. Built on the AUTOSAR R21-11 standard, NeuSAR cCore focuses on multi-core deployment, enhanced communication and storage performance, and information security strategies.It provides a comprehensive development toolchain covering the full software development lifecycle—from software design and implementation to flashing and simulation—improving usability, reducing costs, and boosting efficiency.
Product Features
New Extended Modules
Broader Functionality
Fully compliant with R21-11 standard, with 86 modules in total including new additions such as Dds, Tpsp, FvM, and NeuLink.
High performance full stack multi-core deployment
Supports 34 multi-core modules across communication, storage, diagnostics, security, and system management, enabling optimal load balancing and SWC deployment.
Hypervisor Solution
Hardware virtualization enables static configuration of multiple virtual ECUs within a single secure and isolated physical ECU—reducing design risks and costs.
Support for Next-Gen Communication Protocols
Covers CAN (FD), LIN, Ethernet (SOME/IP + DDS), and FlexRay,
meeting both traditional and new communication demands.
Complete Cybersecurity Coverage
Developed according to ISO/SAE 21434 standard, supports full-stack security protocols including SecOC, TLS, MACsec, IPsec, firewall, SecureBoot, and secure OTA updates.
Adding Functional Safety Certification for Chip Os
First in China to achieve ISO 26262 ASIL-D certification, covering safety-related modules (Os, Rte, WdgM, Crc, E2E, etc.), with nearly 10 mainstream chips certified.
New Extended Modules
Broader Functionality
Fully compliant with R21-11 standard, with 86 modules in total including new additions such as Dds, Tpsp, FvM, and NeuLink.
High performance full stack multi-core deployment
Supports 34 multi-core modules across communication, storage, diagnostics, security, and system management, enabling optimal load balancing and SWC deployment.
Hypervisor Solution
Hardware virtualization enables static configuration of multiple virtual ECUs within a single secure and isolated physical ECU—reducing design risks and costs.
Support for Next-Gen Communication Protocols
Covers CAN (FD), LIN, Ethernet (SOME/IP + DDS), and FlexRay,
meeting both traditional and new communication demands.
Complete Cybersecurity Coverage
Developed according to ISO/SAE 21434 standard, supports full-stack security protocols including SecOC, TLS, MACsec, IPsec, firewall, SecureBoot, and secure OTA updates.
Adding Functional Safety Certification for Chip Os
First in China to achieve ISO 26262 ASIL-D certification, covering safety-related modules (Os, Rte, WdgM, Crc, E2E, etc.), with nearly 10 mainstream chips certified.
Enhanced Engineering Efficiency & Usability
- Detailed configuration comments and one-click error fix suggestions
- Supports importing and diffing of DBC, ARXML, LDF, ODX files
- Flexible routing and gateway import for CAN-to-Ethernet forwarding
- Advanced RTE configuration tools with auto/manual mapping and one-click sync
- NeuLink integration for ld file generation and memory partitioning
- MCAL import/export/edit/code generation capabilities
- Complete documentation and developer manuals provided

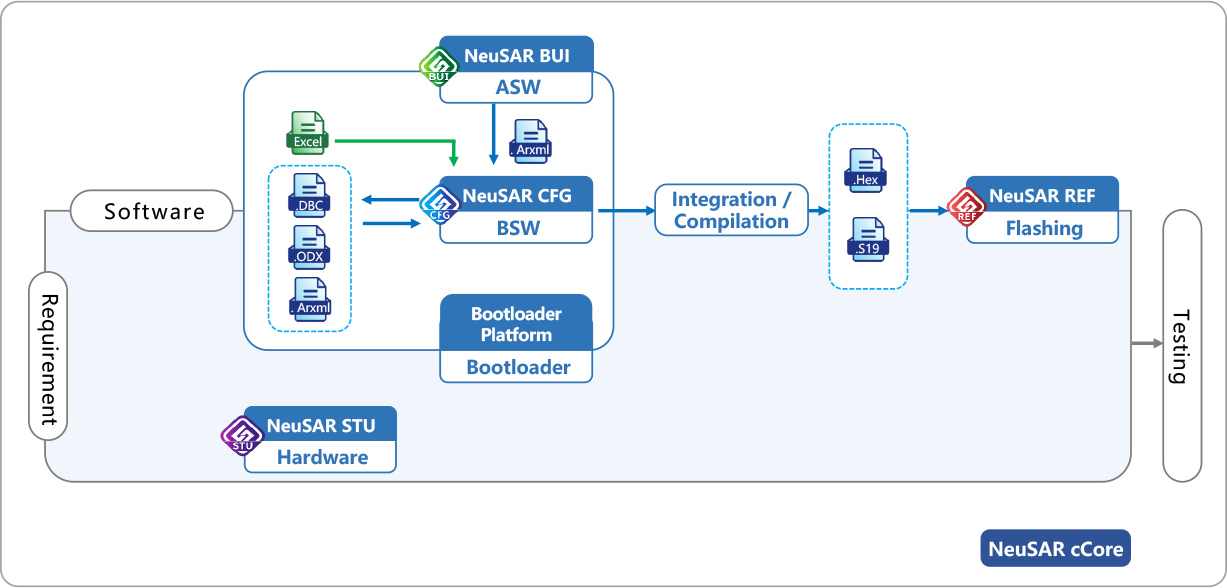

One-Stop Toolchain ro support full-process development
Based on the comprehensive upgrade of the NeuSAR Configurator configuration tool, NeuSAR cCore has also enhanced its supporting development tools, including NeuSAR Builder, NeuSAR Studio, and NeuSAR Reflasher, forming a complete development toolchain that covers the full software development process—from software design and code implementation to flashing and simulation debugging.
NeuSAR Configurator
Basic Software Configuration and Code Generation Tool
Improves usability, accuracy, and work efficiency
NeuSAR Configurator
Basic Software Configuration and Code Generation Tool
Improves usability, accuracy, and work efficiency
- MCAL SIP configuration & code generation
- Custom module functionality
- CI/CT support
- Automatic partition file generation
- Supports multi-user configuration of the same module
NeuSAR Builder
SWC (Software Component) Design Tool
Covers the full development process based on AUTOSAR architecture
NeuSAR Builder
SWC (Software Component) Design Tool
Covers the full development process based on AUTOSAR architecture
- Visual graphical interface
- Compatible with various XSD versions
- Upstream and downstream data sharing
- Multiple project switching
- Multi-info display and fast search
NeuSAR Studio
Virtual Simulation Development Tool
Enables compilation, execution, and debugging in an integrated environment without hardware
NeuSAR Studio
Virtual Simulation Development Tool
Enables compilation, execution, and debugging in an integrated environment without hardware
- Visual debugger
- Support bus simulation (CAN/ETH/LIN) and interaction with real ECU
- NvM Simulation
- CI/CD construction
- Multi-core functionality simulation
NeuSAR Reflasher
Diagnostic Service Reflashing Tool
with High Compatibility and Extensibility
NeuSAR Reflasher
Diagnostic Service Reflashing Tool
with High Compatibility and Extensibility
- Flowchart-level configuration interface
- Configurable TP protocol parameters
- Supports mainstream communication hardware
- CAN(FD), Ethernet buses
- Python extensions
NeuSAR Reflasher
诊断服务刷新工具，具备强兼容性及扩展性
- Flowchart-level configuration interface
- Configurable TP protocol parameters
- Supports mainstream communication hardware
- CAN(FD), Ethernet buses
- Python extensions
NeuSAR Studio
国内首家集代码编辑、编译(GCC)、仿真和调试功能的虚拟化工具
- Visual debugger
- Support bus simulation (CAN/ETH/LIN) and interaction with real ECU
- NvM Simulation
- CI/CD construction
- Multi-core functionality simulation

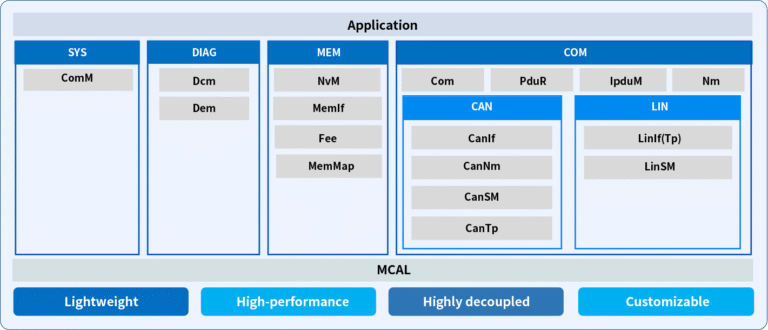

NeuSAR CP-Lite Basic Software
As the core product of the NeuSAR family, NeuSAR cCore is designed to meet the market needs for vehicle control-level functions. It introduces NeuSAR CP-Lite—a high-performance, highly decoupled, and customizable lightweight AUTOSAR CP basic software product.NeuSAR CP-Lite includes modules such as Network Management, Diagnostics, Communication (CAN, LIN), and Storage, while achieving extreme functional streamlining and memory optimization under AUTOSAR compliance. It aims to help customers deploy professional AUTOSAR solutions quickly, efficiently, and cost-effectively.
Function Overview
·Network Management:AUTOSAR-compliant network management protocol stack, streamlined for efficiency
·Diagnostic Data Management:Streamlined UDS-compliant diagnostic protocol stack
·Data Storage:Streamlined AUTOSAR-compliant NvM storage management
·Data Communication:Streamlined AUTOSAR-compliant CAN and LIN communication protocol stacks
Product Performance
•Adaptation to Small Flash Chips
Supports deployment on chips with Flash sizes of 256K or 512K
•Reduced Resource Usage
ROM usage can be reduced to below 90KB, RAM to below 10KB
·Detailed Comment Descriptions and Validation Functions
·Supports Communication and Diagnostic File Import and Diffing
·Low Memory Footprint with High Code Execution Efficiency
·Highly Decoupled Architecture, allows selective disabling of functions via configuration without compiling unused modules
·Compliant with AUTOSAR Protocol Specifications
AURIX™ TC4x Drive Core for NeuSAR
Discover AURIX™ TC4x Drive Core for NeuSAR for automotive software development, result of ecosystem collaboration between Neusoft Reach, Infineon and HighTec.
AURIX™ TC4x Drive Core for NeuSAR is a scalable software pre integrated package portfolio available on Infineon's automotive microcontrollers AURIX™ TC4x, designed to simplify and accelerate automotive software development. It includes Infineon MCAL, HighTec Compiler for optimized code and HighTec LLVM TC/C++ debugger.
- Pre-integrated software pre integrated package: streamlined development process with pre-integrated Neusoft Reach and Infineon software and tooling, designed to simplify development and shorten time-to-market.
- Reduce commercial complexity: one-stop shop solution.
- Risk-free evaluation: 3-month free evaluation period for all components.
AURIX™ TC4x Drive Core for NeuSAR includes:
Basic Software：
NeuSAR cCore 4.0
non-standard modules are supported
Configuration Tool：
NeuSAR Configurator
Fully upgraded configuration tool
Supports arbitrary MCU-compiler selection
Supports multi-person parallel development
Supports MCAL development
Third-party Environment
One-stop access to the complete AUTOSAR CP development environment to get started immediately.
Including Infineon MCAL, its supporting tools, and HighTec compiler
Demo Projects
based on sample projects
(CAN, LIN, DIAG, etc.)
Configuration Manual
A complete hands-on guide to help open up new explorations
